How to Build a Modern Wood Floating Vanity For Less than $30 (an IKEA Hack!)

Intro by Robin - Steps by Ed





This is one of my favourite projects!!!  I love when we can figure out a way to make something beautiful in an affordable way - that's also super simple.  If you know us, you know we've shared lots of these in the past.

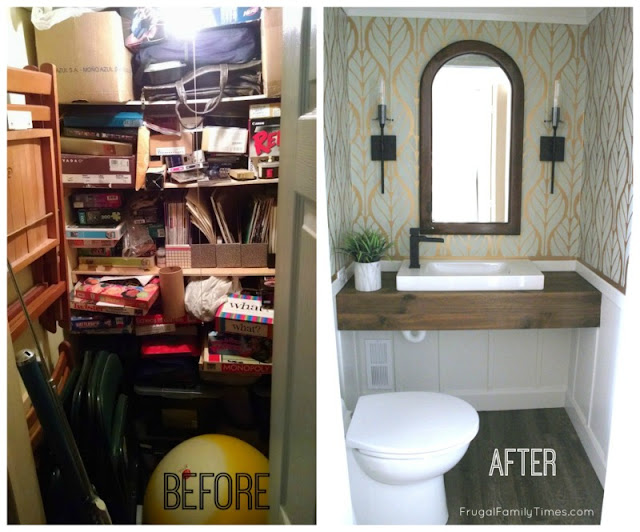

First some background.  This fall we took a closet in our basement - with no rough-in or any plumbing - and with the magic of DIY, we turned it into a powder room.  This before and after is pretty dramatic:




There was a mountain of challenges.  One was the tiny size of the space.  It's a mere 44" x 43".


And - to make the install extra fun for Ed - I had very particular ideas of how I wanted the room laid out.  My vision was to give it a dramatic feel as you open the door - I wanted the beautiful sparkle of lights and and a tall dramatic mirror - not a toilet facing you.  It wasn't the easiest layout for his part of the job.


Finding the affordable and narrow Hagaviken sink from IKEA paved the way to the design I desired.  Originally we purchased the matching vanity for the sink - but I also demanded a spacious feel - even as we paid for it I wasn't convinced it was right: a vanity with legs to the floor would make the room feel congested.   Every inch is sacred.  So we returned it.


(An IKEA tip: be sure to sign up for the free IKEA Family program - it doubles the window for you to return stuff for real money - from 45 days to 90 days. We didn't do this - but we still got store credit - so not tragic.)

The solution: a floating vanity.  My first vision was of a reclaimed beam - until I scoured a couple of reclaimed materials shops.  The depth I needed - about 16" - just wasn't easy to find.  Plus, the gouges and bumps in reclaimed boards didn't seem like the easiest thing to keep clean.  And it is a bathroom after all - cleanliness kinda matters.


Then, in one of the shops light bulbs floated over my head.  I saw this display...




These are manufactured faux beams from reclaimed boards.  The second from the bottom was calling to me.  I chatted with the manager to see what the cost would be for them to make the size I was looking for.  I tried to be classy and not let my jaw drop or gasp when he said: $400-600!


So - a trip to Home Depot later - and I figured out how we could make our own floating vanity - that looks like reclaimed wood - on a tight budget: $30!



Tools and Materials:
  • 1 - 16"x96" Whitewood panel
  • 2"x2" or 2"x4" lengths to secure to walls and support the vanity
  • Table saw or circular saw that can be set to rip at a 45-degree angle.
  • A plumbing drain and water supply rough in that are as high as possible without interfering with the vanity height
    • We did this ourselves as we were doing the whole room from scratch. It isn't a big deal if yours is already roughed in - it just means some of the plumbing might show more.
  • Wood glue/screws
  • The supplies for the finish of your choice (Ours was a DIY finish - from things around the house -  that cost us pennies!  All the details coming soon...)
  • Ikea Hagaviken Sink
  • Delta Ara Faucet (which Delta generously gave us to use.)


This is a white wood panel; it is the Bad New Bears of the lumber aisle - a collection of mediocrity that no one wants, slapped together into something pretty useful.
Look it over thoroughly for wood filler and pick a side with the least amount of it your face surfaces. Filler doesn`t take finish as well.



    The Steps:


    The Hagaviken Sink is nearly 14" deep.  So we decided that we wanted a vanity that was only a little bit deeper - hence the 16 (actually 15-3/4) whitewood.  Our bathroom is also only 44 inches wide.  So the 96" board means we can cut it in two and use half for the top of the vanity and the other half (ripped down slightly) for the apron.  If your sink/bathroom dimensions are different, then you might need more or less whitewood.


    1. Cut the Whitewood to width for your Vanity/Room.

    Ours became two 44" halves.  You'll want to wait to cut the depth for when you've got the mitre just right.


    2.  Mitre the lengths to 45 degrees.


    We then mitred the long edges by tilting the table saw blade to 45 degrees.


    This can be done with a circular saw too, but you'll want a guide on it to make sure you keep it straight.


    For the table saw, two people made sure the board passed through straight.


    • We can't say enough about using a feather board like the one below. It has magnetic dials that allow you to position it perfectly and it can save you a lot of trouble.  It gives just the right pressure to keep your cut straight and true.




    2. Cut the Boards to the final size you want AFTER you get a good mitre.


    This allows you to have a margin of error and maybe even a do-over on the mitre cut.  We made our finish counter depth 15" and the front face board 6-1/4"




    3. Join the two boards!


    Support the joint with a 2"x2" from behind and glue, predrill and then screw through it into the two boards.  Don't be cheap with the wood glue - you want this to stick and you can use a damp cloth to wipe off the excess.


    Get the mitre as tight as possible.  You don't have the luxury of wood filler to hide your sins, as it will be revealed by your finish (unless you plan to paint the vanity - then your mistakes will be hidden).


    Take your time and be sure to wipe up any glue that squeezes out immediately too - yes, it's worth mentioning this twice.



    4.  Sand and Finish.

    Our antiquing process merits a separate post - it's so cool - it cost just pennies and used stuff from around the house.  Coming soon!  But you can pick any finish you'd like.





    5. Install Vanity Counter.


    Here is our sink plumbing. Notice how much higher our supply and drain are - this is to keep everything hidden for the `floating' illusion.  The 2"x4" that supports the sink lands just above the drain and pipes. Yup -things are tight.


    We mounted 2"x4"s along the walls and back to support the counter.
    We drilled into studs to give it lots of support.


    The next challenge we had was how small the room was - the counter wouldn't drop nicely into place because everything was so tight.
    I ended up busting my drywall a bit to make it work. There was no other way to do it. The small bit of patching I had to do was less of a pain than assembling the mitre in place and doing all the finishing.


    6. Cut a hole for the Sink

    We had a plywood stand-in for the counter that we had been using.  We mocked up exactly where we wanted the sink - and cut out the necessary hole as a guide.  We had one chance to get this hole right.


    This made it easy to trace, drill and cut-out a hole for the sink to drop into.  We kept it towards the back and trimmed extra bits here and there to make it fit.


    Remember, cutting the hole a little too small is much easier to fix than cutting it too big, so measure and cut carefully.




    7. Install the Faucet.

    Delta provided us with this dream faucet
    We like that it looks a bit like an old-time water pump and it is so solid and well made, it feels like the perfect final touch on this project.


    And the waterfall - both soothing and dramatic.  Perfection.



    The sink was very tall where the faucet needed mounting, I had to mount the faucet directly to the sink (versus the usual mounting with the counter directly touching below). I added a piece of wood to spread out the force of the mounting bracket. This is likely overkill, but kids/teenagers will be bashing this room around for years to come, so, yeah, overkill just enough.


    8. Connect the plumbing!

    Last step. We used the sink trap that IKEA included with the Hagaviken. There is a lot of hate online for this connection, but I honestly haven't had any issues. It is likely because I wasn't trying to hide it behind vanity drawers (what it is designed for).  Anyhow, no big deal.


    The Delta faucet connections provided lots of extra water supply hose, so I VERY carefully measured and cut the lines so that they would be short enough to hide nicely.  As you can see, when standing and looking into the room, the plumbing is basically invisible. We love it.




    More about our Basement Closet to Powder Room...
    • We did a reclaimed wood-look finish on our vanity - with things from around the house - for pennies! (Coming Soon...)
    • And we'll share about how we did all the finishing touches on our Classic, Modern, Natural Powder Room.  We'll give you all the sources and details for:
